10 METER FM AMPLIFIER
5-10 Watts In / 90 - 110 Watts Out
by
W4NFR
Back in the 1980's, I constructed an single stage transistor amplifier to boost my 10 meter FM signal.
After converting a HyGain CB board to transmit and receive FM on 10 meters, I needed more Tx power.
The following shows the board layout and the schematic of this amp. Also, photos of the finished amp.
The actual power in is about 10 watts and the output is 110 watts.

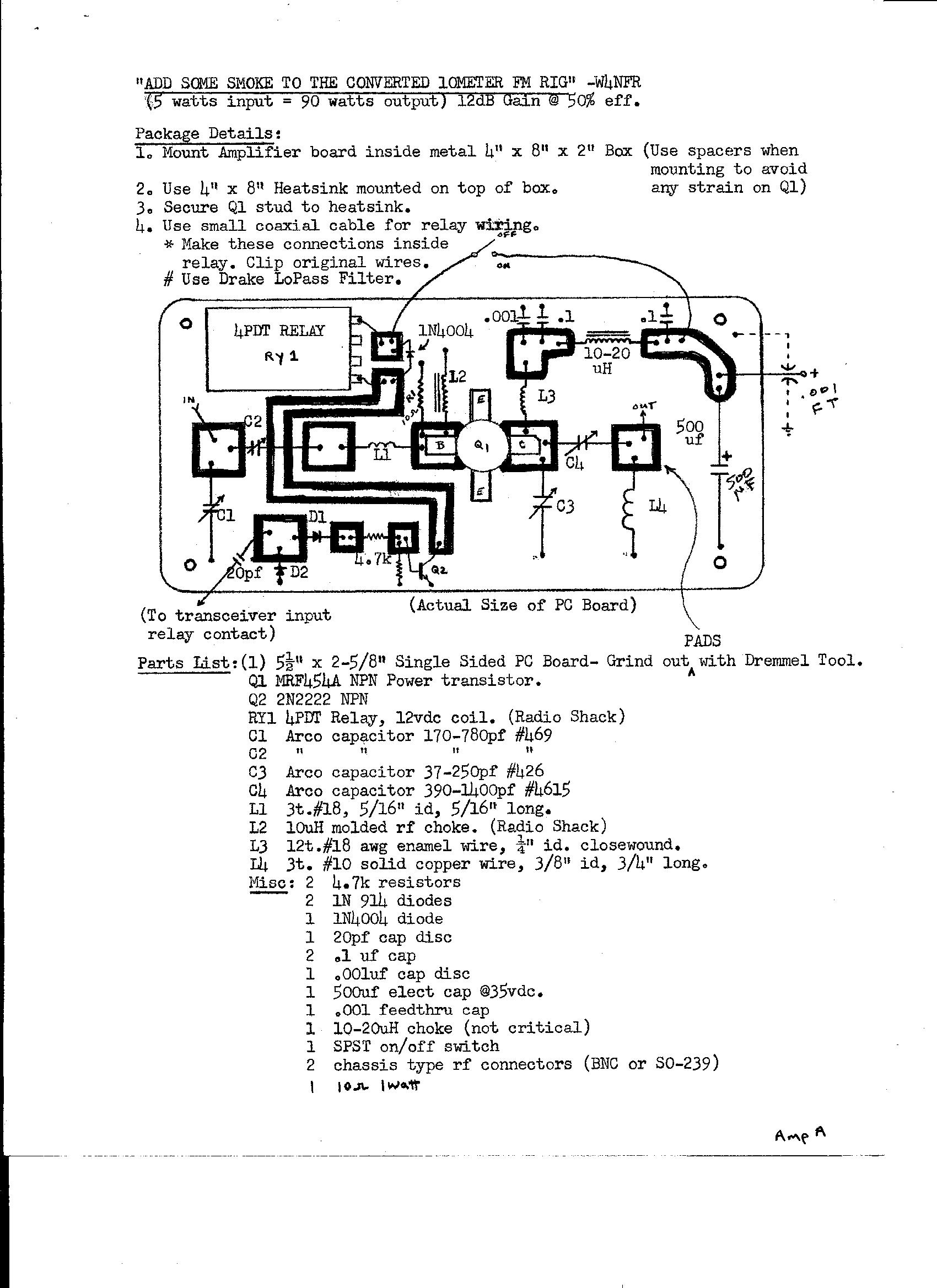

COPPER CIRCUIT BOARD LAYOUT

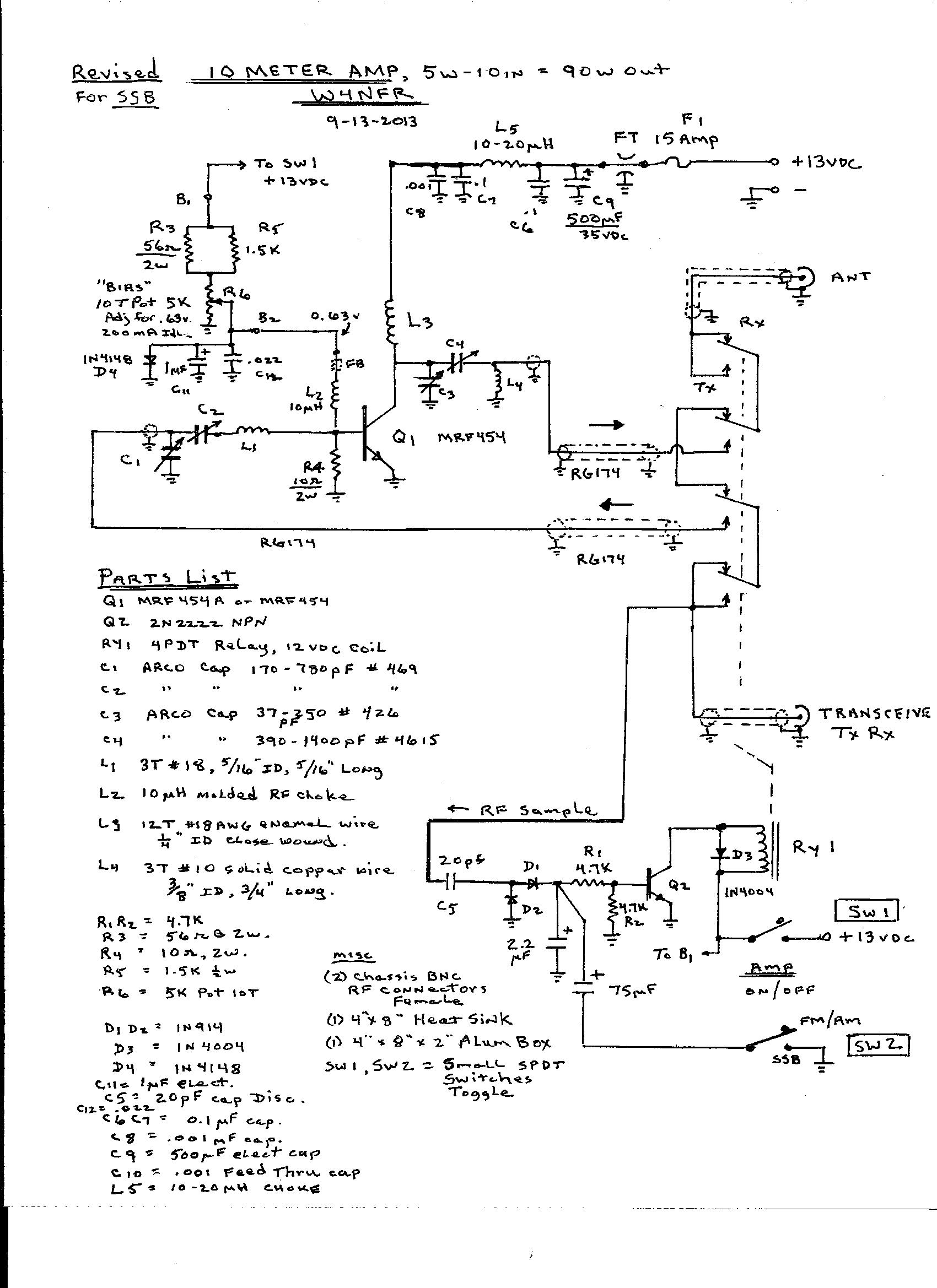

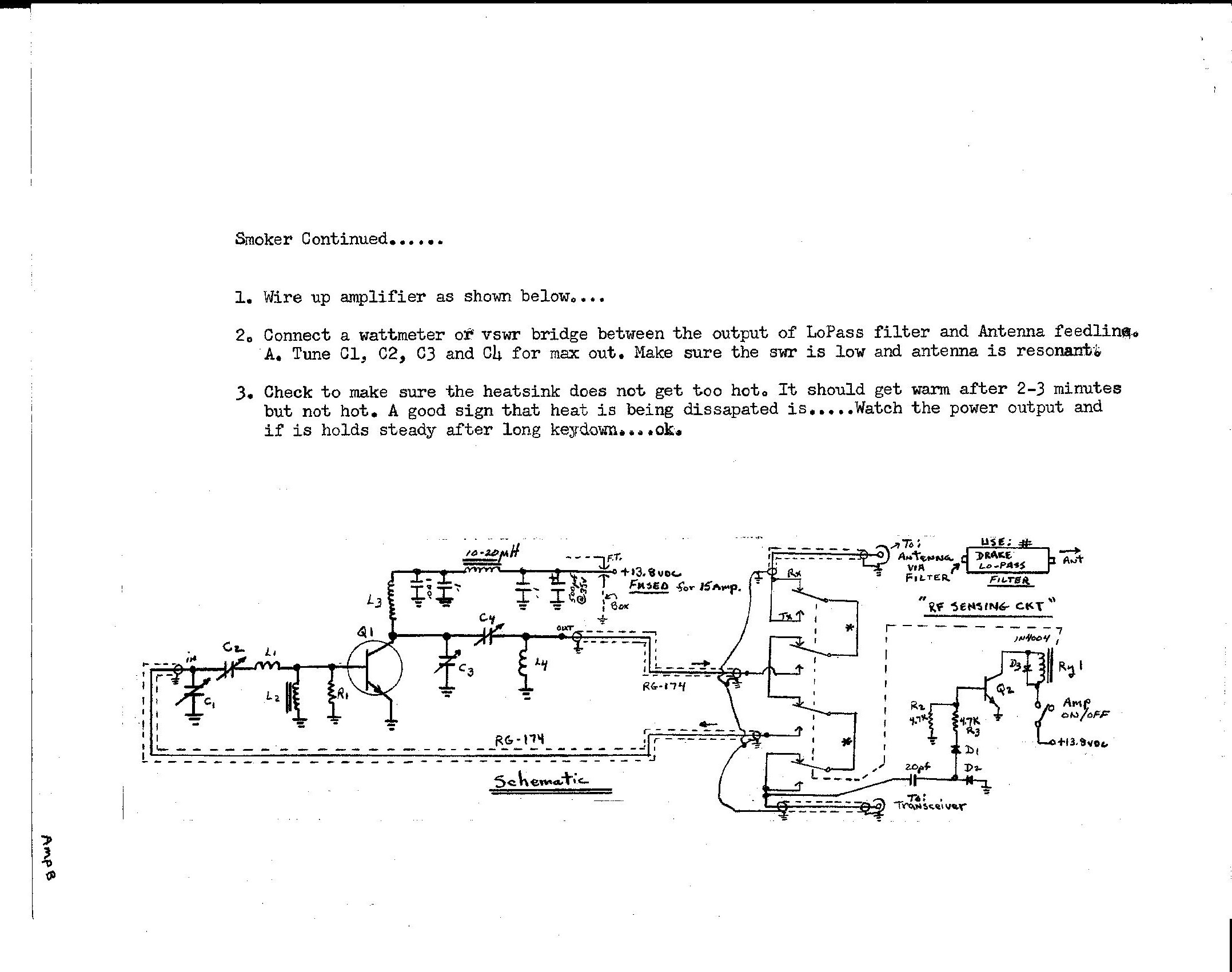

SCHEMATIC DIAGRAM

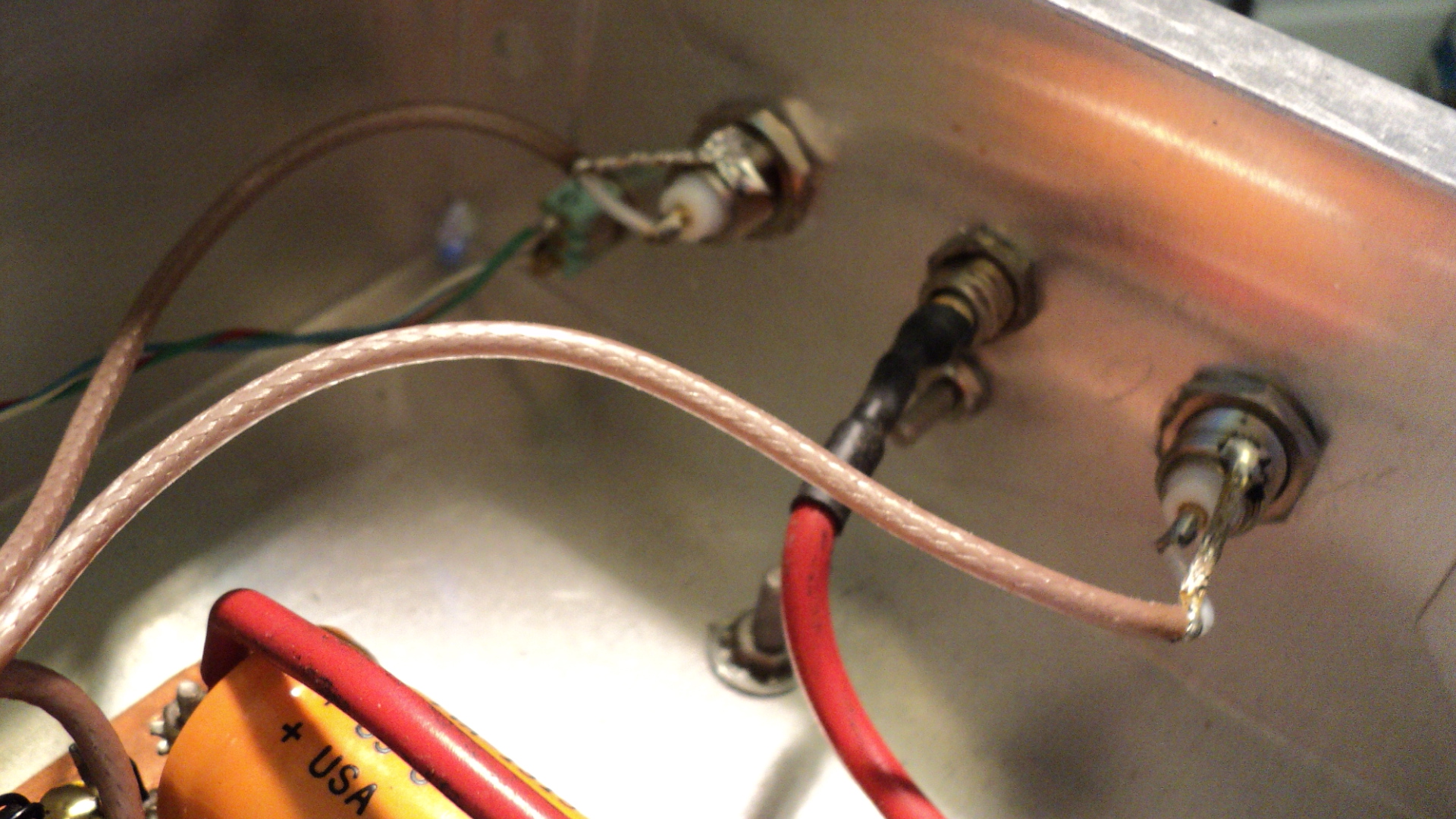

IN AND OUT RF CONNECTIONS AND +12 VDC INPUT

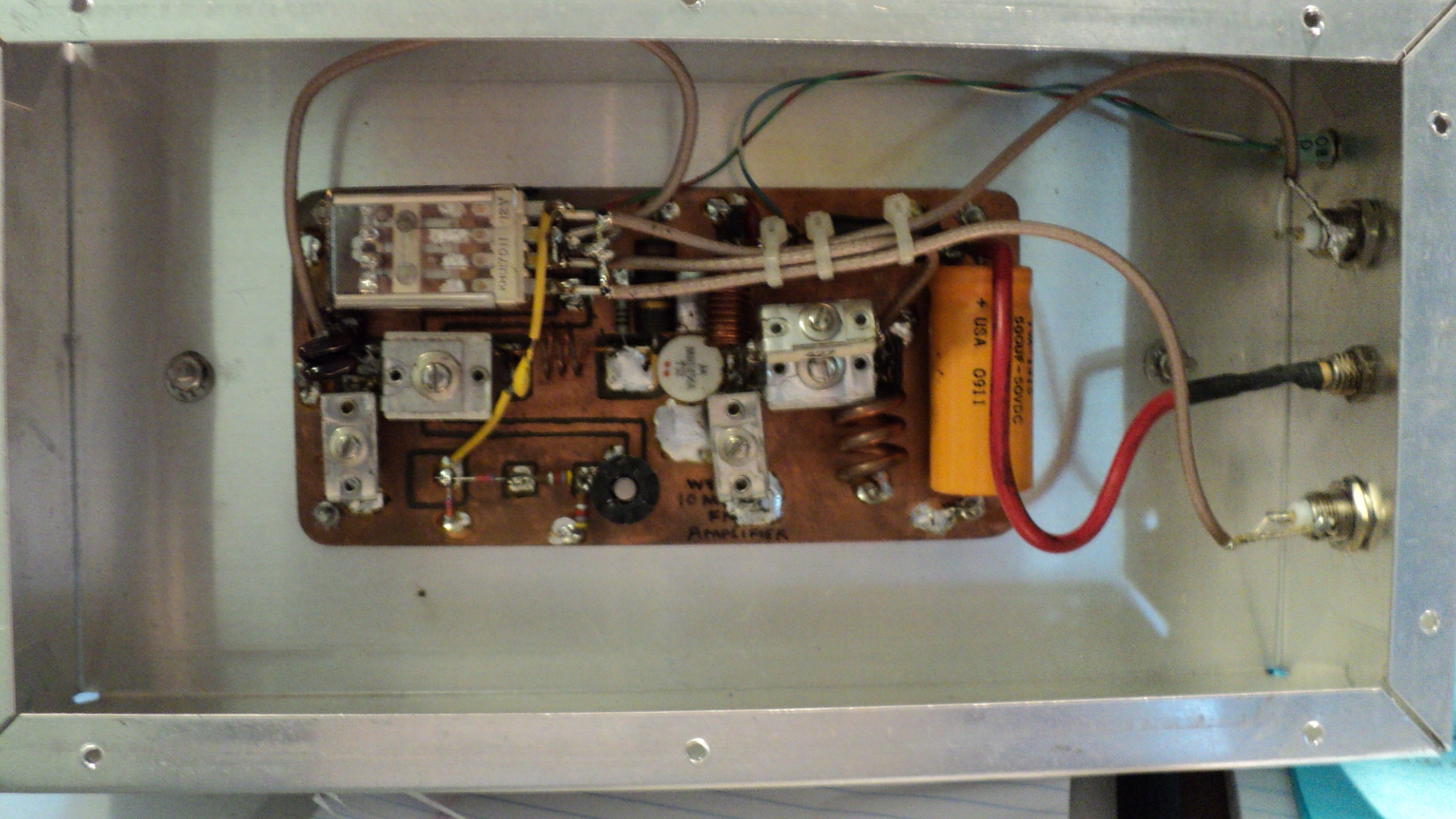

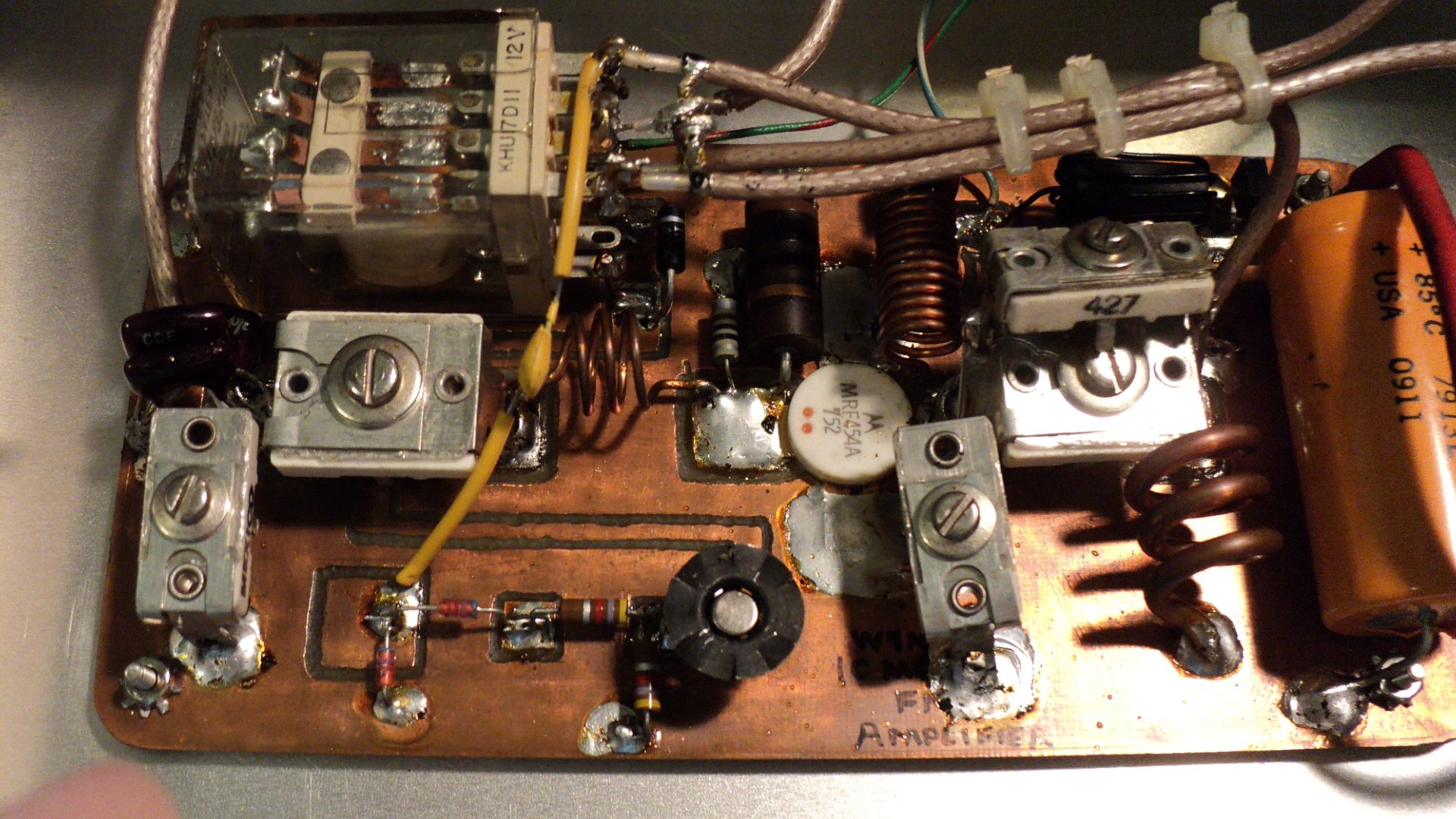

CIRCUIT BOARD MOUNTED INSIDE CHASSIS
OVERALL PHOTO

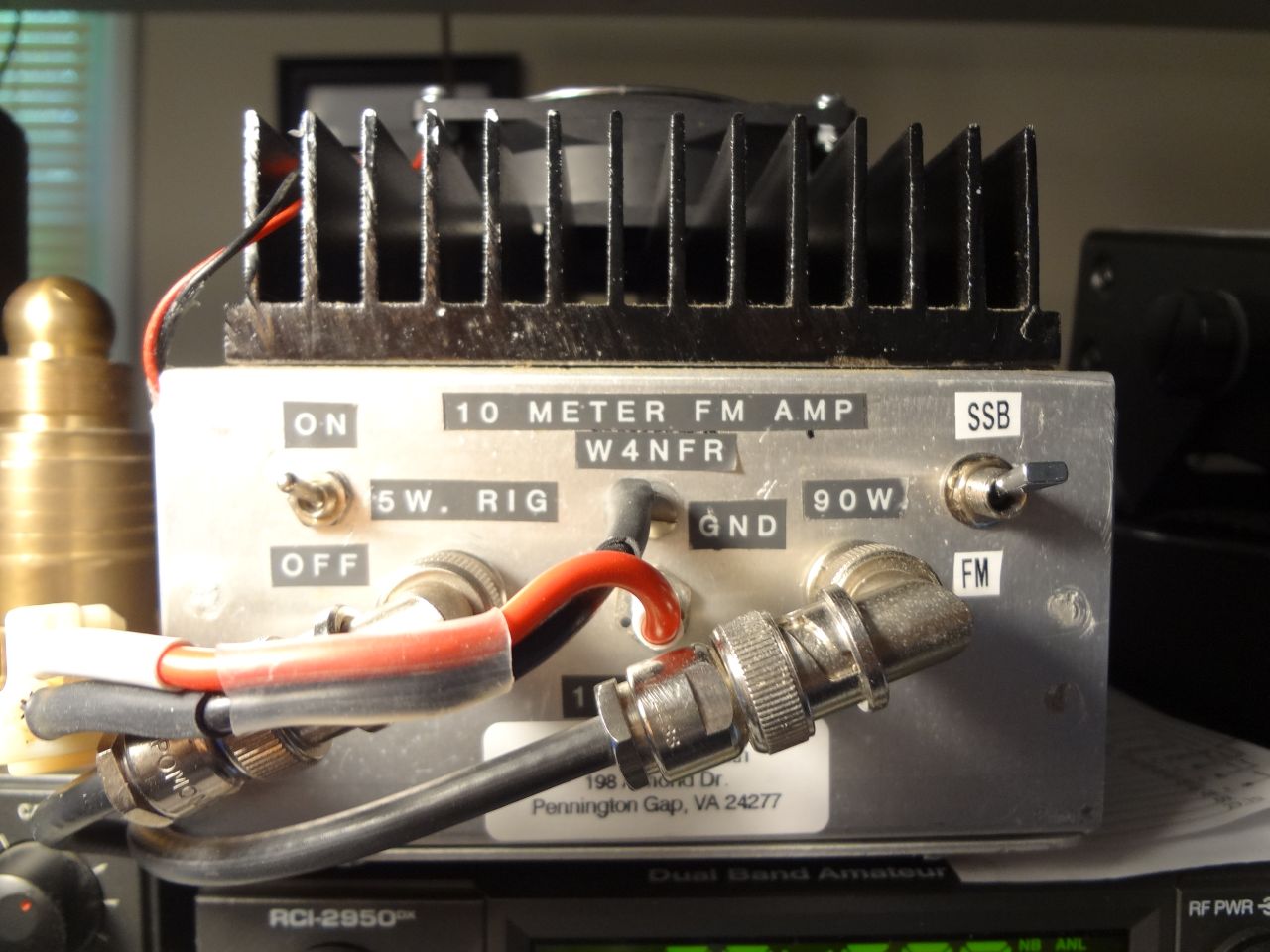

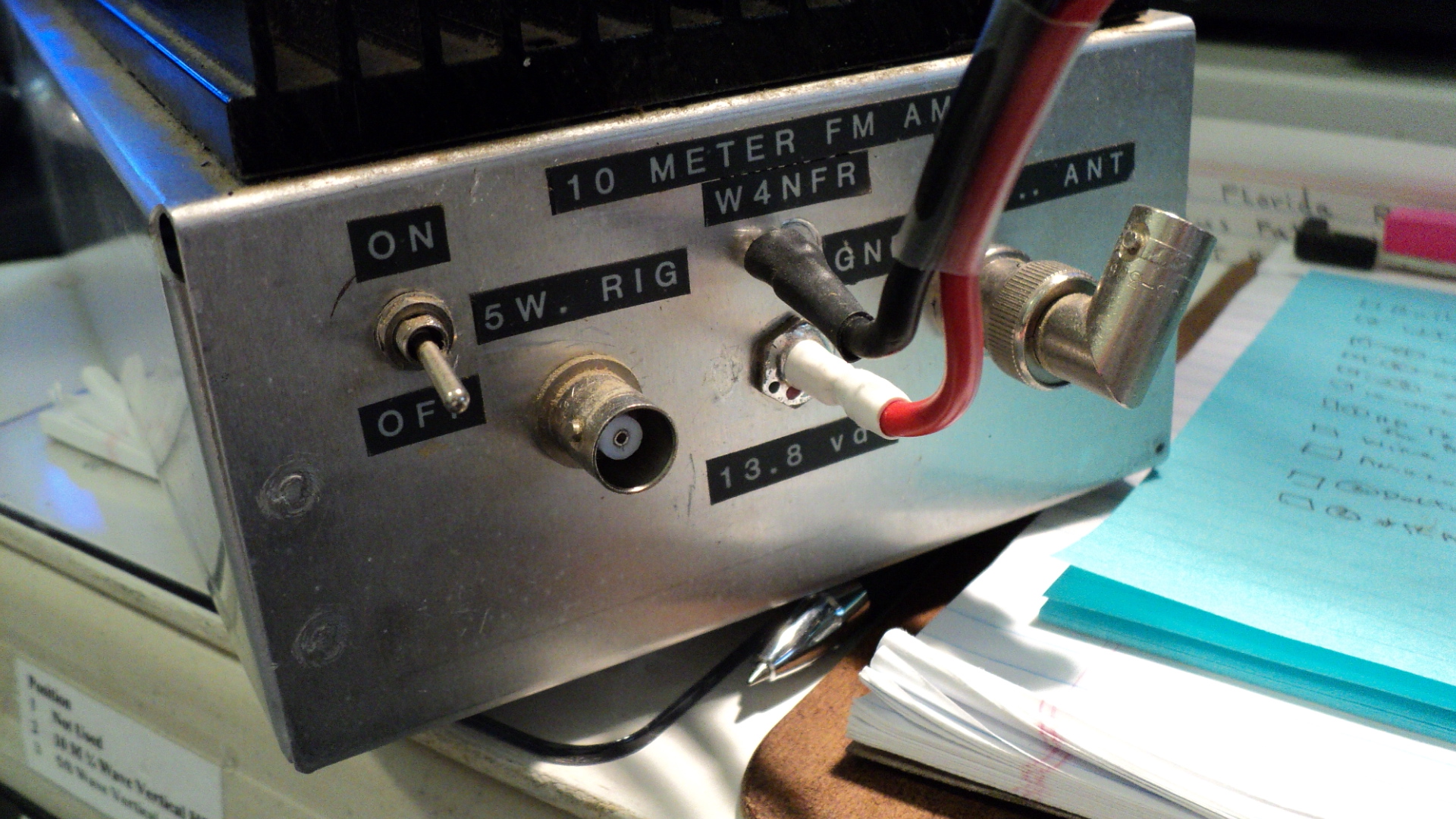

FRONT VIEW

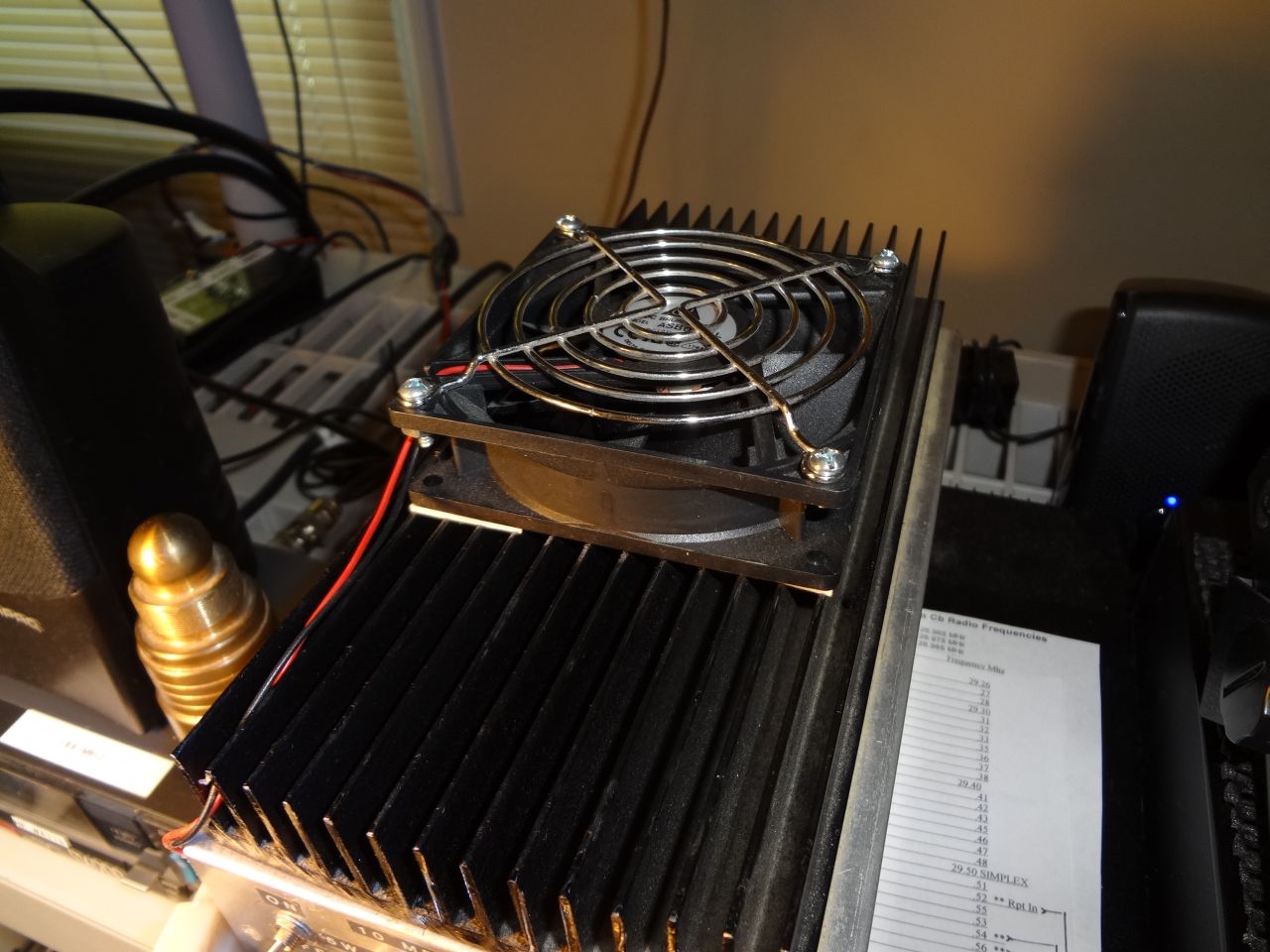

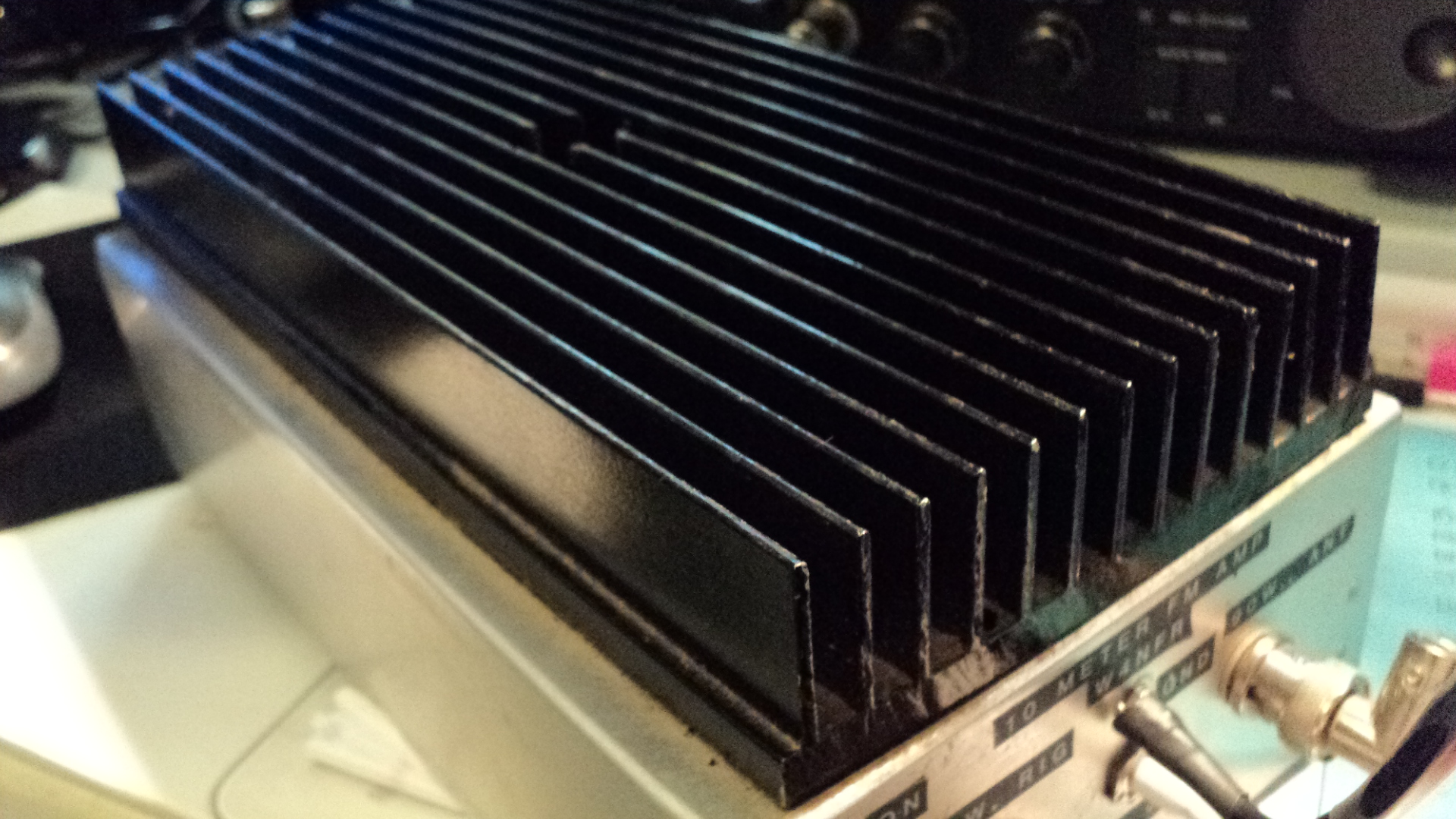

HEATSINK

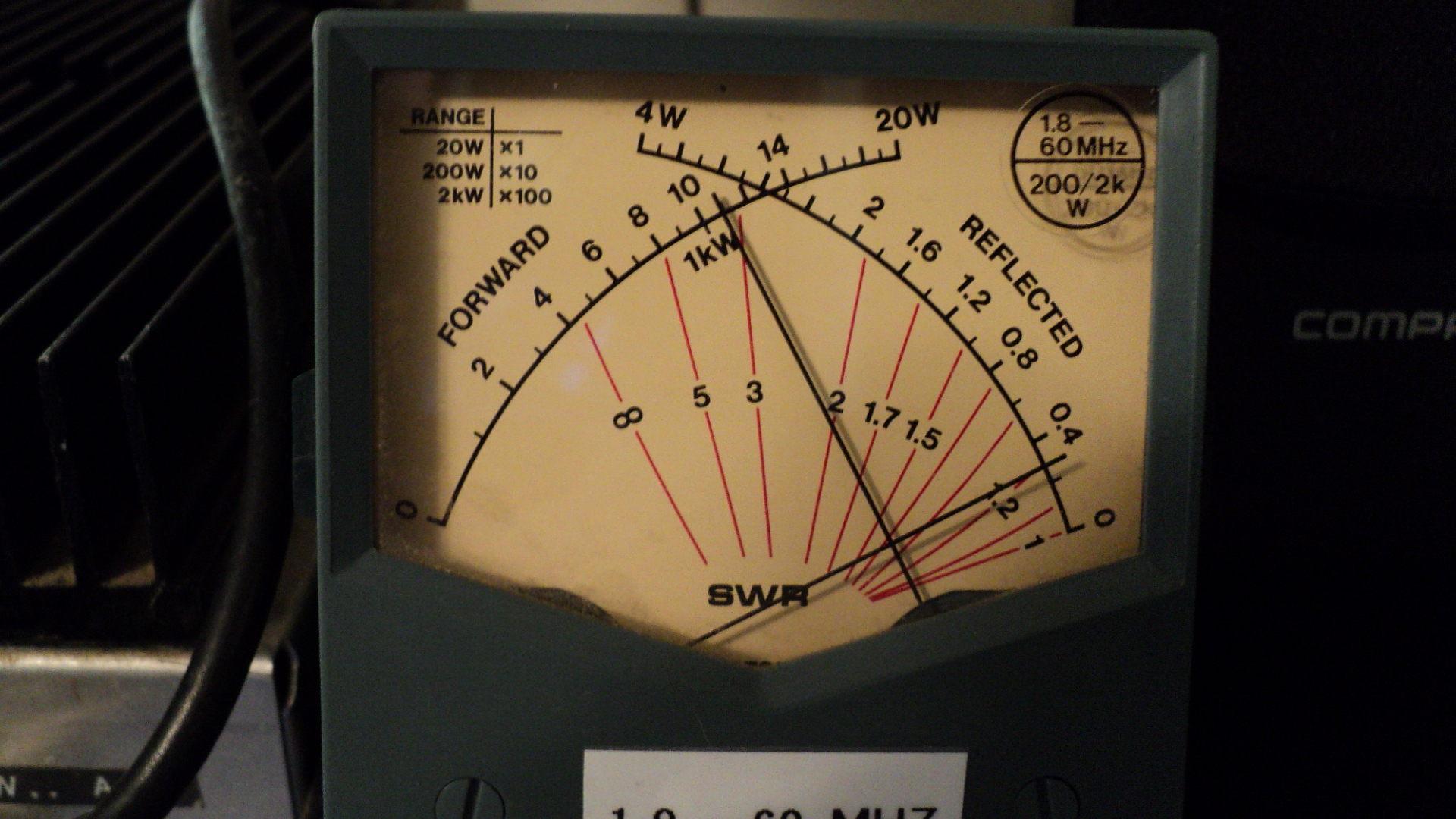

THE SWR MEASURMENT INTO THE MODIFIED A-99 ANTENNA
THIS THE REVISED EDITION OF THE AMPLIFIER
by
W4NFR
09-13-2013
** THE END**
THE END
W4NFR
